Electronic Signalling Systems

Signal head mounting configurations: mast arm vs. post-top vs. gantry

The way a signal head is mounted shapes everything from driver sightlines to structural loadings and ongoing maintenance costs. Choosing between mast arm, post-top, and gantry configurations requires a clear understanding of each option's engineering trade-offs.

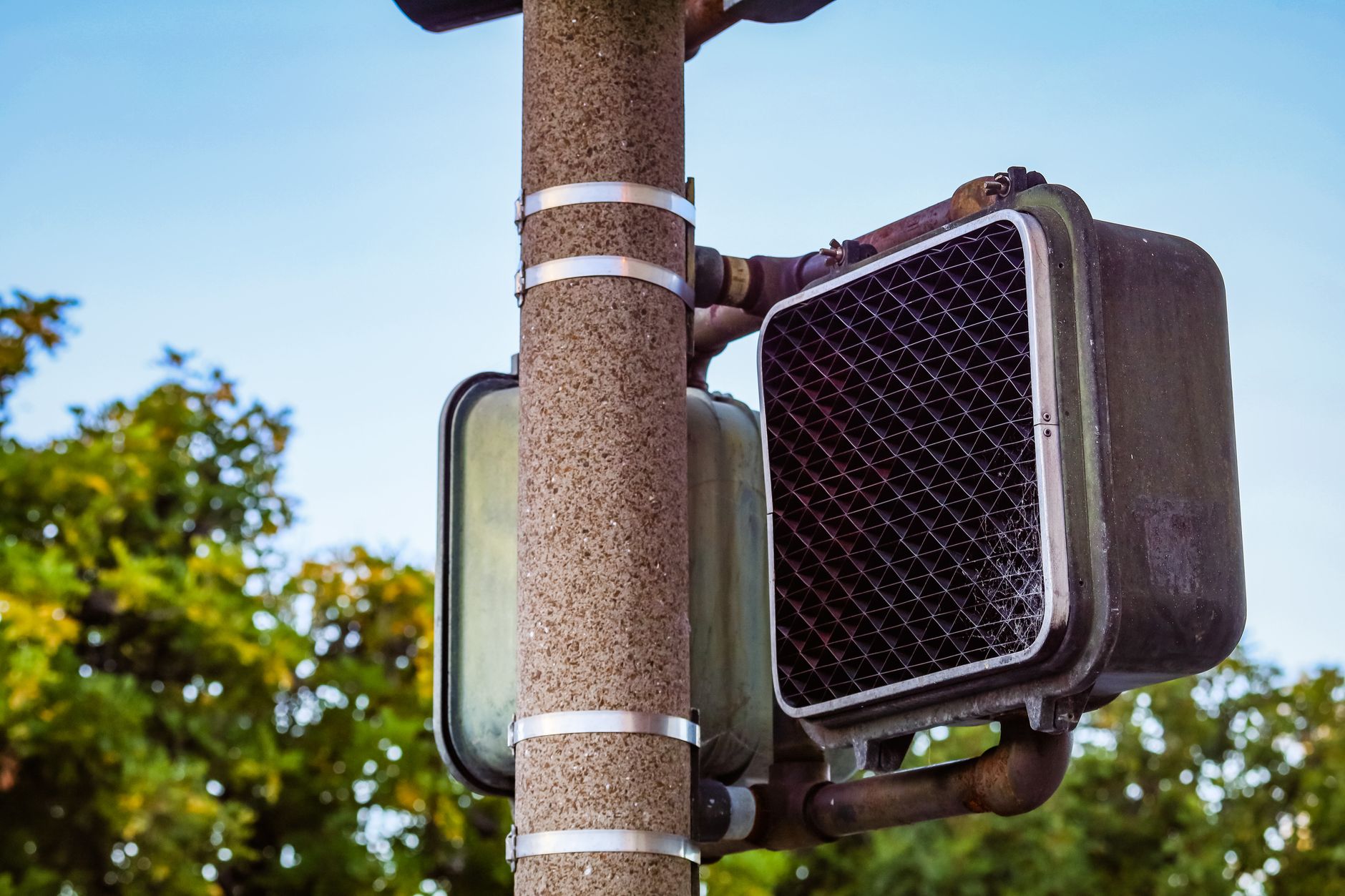

Detailed image of an urban lamppost with a traffic light and trees in the background.

Photo by Robert So on Pexels

Signal head mounting configurations are one of the less-discussed decisions in intersection design, yet they have a direct bearing on driver compliance, structural performance, and long-term maintenance access. The three dominant configurations in Australian practice are mast arm, post-top (pedestal), and gantry. Each suits a different combination of road geometry, speed environment, and budget. Getting the choice wrong means either poor driver sightlines or a structure that's over-engineered and expensive to maintain.

Post-top (pedestal) mounting

Post-top mounting places the signal head on a vertical pole set at the kerbside or on the median. It's the simplest structural solution and the lowest capital cost. Most urban intersections with speed limits at or below 60 km/h use this configuration, where approach distances are short and the signal head at kerbside is close enough to the driver's natural sightline.

The limitation is lane coverage. A single post-top head covers one lane reliably. Multi-lane approaches require additional poles, which multiplies the civil footprint and creates clutter in constrained kerb zones. Post-top heads are also more susceptible to being obscured by heavy vehicles stopped ahead of the line. On wide arterials, the far-side mounted head can be difficult for drivers in the outer lanes to read at approach speed.

Maintenance access is straightforward: a single technician with a platform vehicle can service the head at street level without lane closures beyond the immediate footpath zone. Bob Panich Traffic Signals specifies post-top configurations for low-to-medium volume urban intersections where kerb space permits proper setback and sightline geometry is confirmed by a desktop sight distance check.

Mast arm mounting

A mast arm extends a horizontal arm over the carriageway from a single vertical pole, positioning the signal head directly above or slightly ahead of the stop line. This is the standard configuration for multi-lane arterials and intersections on roads with speed limits of 70 km/h or above, where a kerbside head would require drivers to look too far left to confirm signal state.

The structural design of a mast arm is more demanding than a pedestal. The arm introduces a significant bending moment at the column base, and wind loading on the signal heads creates oscillation that must be accounted for in the arm profile and connection detail. Australian Standard AS 1742.14 governs the structural requirements, and fatigue loading from wind-induced vibration is a design consideration that gets underestimated on longer arms. Arms beyond 12 metres typically require a more detailed dynamic analysis.

LED signal heads have improved the situation on longer mast arms. They're lighter than their incandescent predecessors, which reduces static loading and lowers the oscillation amplitude under wind. That said, the sensitivity of LED heads to power quality fluctuations means that any voltage disturbances travelling along cable runs inside longer arms need consideration in the electrical design.

Mast arm configurations also simplify the signal layout for drivers. One pole per approach, with heads spanning each lane, gives a clean overhead presentation that's consistent with what drivers expect on higher-speed roads. Retro-reflective backboards are standard on mast arm installations to improve contrast and reduce missed readings in high-ambient-light conditions.

Gantry mounting

A gantry spans the full carriageway width, supporting signal heads over every lane from a portal frame or overhead structure. Gantries are used where lane-specific signalling is required across a wide road, where there are more than three lanes in one direction, or where the intersection geometry makes single-pole coverage impractical.

Freeway on-ramp signals, motorway merge control, and multi-lane signalised intersections on roads carrying 80 km/h traffic are the primary use cases. Gantries also appear at locations where pedestrian and bicycle facilities require physical separation from vehicle signal heads, and where future lane-use management (bus lanes, reversible lanes) makes overhead mounting the only practical option for per-lane control.

The cost differential is substantial. A gantry requires independent footings on each side of the road, a portal frame designed for full traffic loading and wind, and a traffic management plan for installation that typically involves overnight lane closures. Maintenance access requires either a gantry-mounted walkway or specialised elevated work platforms. Bob Panich Traffic Signals approaches gantry specifications with a full structural load case analysis and confirms access requirements with the relevant road authority before finalising the design.

One advantage that's worth naming: overhead mounting on a gantry provides the best possible driver viewing angle for signal heads in all conditions, including when heavy vehicles are queued. The head is always in the driver's upper visual field, independent of what is stopped ahead. On roads where freight vehicle density is high, this compliance advantage is real.

Comparing the configurations

The table below summarises the core differences across the three configurations for reference:

  • Post-top: lowest cost, simplest maintenance, suited to low-speed urban intersections with limited lane widths.
  • Mast arm: moderate cost, good sightline performance across two to three lanes, suited to arterials at 60โ€“80 km/h.
  • Gantry: highest cost and complexity, best per-lane coverage, suited to wide multi-lane roads and managed motorway applications.

In practice, many intersections combine configurations. A principal road approach may use a mast arm while the minor road uses post-top heads on each corner. This is common on asymmetric intersections where lane counts and approach speeds differ significantly across legs.

Structural and maintenance factors that affect the decision

Wind region classification under AS/NZS 1170.2 directly determines the structural demand on each configuration. Installations in cyclonic regions (northern Queensland and parts of Western Australia) require heavier arm profiles and higher-rated column connections than equivalent installations in southern cities. Mast arm designs in these regions sometimes use shorter arm lengths and accept a reduced lateral position to stay within practical structural limits.

Maintenance frequency and cost should be modelled over a 20-year horizon, not just at installation. Post-top configurations have lower per-visit maintenance costs but may need more frequent visits if the location has a high LED failure rate or a history of vehicle strike damage. Gantry installations have higher access costs per visit but typically have fewer individual components to maintain per lane.

The interaction between signal head mounting and controller hardware also matters. The hardware inside the traffic cabinet must support the cable run lengths implied by the chosen configuration, particularly for gantry installations where runs to the far side of the road can exceed 60 metres. Cable resistance and signal integrity over those distances is a specification input, not an afterthought.

How to approach the selection

Start with the road geometry and posted speed. On urban streets below 60 km/h with no more than two lanes per approach, post-top is the default. On arterials above 60 km/h or with three or more lanes, a mast arm is the standard solution unless lane counts or road width push the arm length beyond structural practicality. When lane counts exceed three, a gantry warrants serious consideration.

After the structural form is selected, confirm sightlines using a scaled plan and driver eye height of 1.05 metres (the AS 1742.14 reference value for passenger vehicles). Verify that the chosen head position clears the minimum approach distance for the posted speed. If it doesn't, the configuration or the head position needs to change before detailed design proceeds.

Bob Panich Traffic Signals integrates mounting configuration selection into the early design phase of every intersection project, treating it as a structural and sightline engineering task rather than a product selection. The right configuration saves money over the project life and avoids the compliance issues that come from signal heads that drivers can't reliably see.
